    5.0MP HD 1080P CCTV IP Camera Module 판매 Auto Iris,Auto Focus, POE   2016.10.01

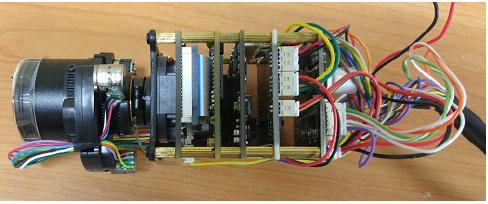

    5.0MP HD 1080P CCTV IP Camera Module 판매 Auto Iris,Auto Focus, POE


Image Sensor 1/2.5 inch 5.0 Megapixel progressive CMOS sensor DSP TI Davinci DM368 DSP 32 dual-core , pure hardware compression Day/Night Auto IR-Cut Support Min.Illumination Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 Electronic Shutter 1/50(1/60)s-1/100,000s Lens Mount CS Mount (support Auto-Iris Lens) Digital Zoom Support Video/Audio Compression Standard H.264 Compression Technology Dual-stream compression technology System Structure Pure hardware compression, watchdog,32M FLASH,128M DDR2; Video Frames Real-time PAL 25fps,NTSC 30fps 1-30fps Adjustable Bitrate 500---8000Kbps Adjustable Bitrate Control CBR/VBR/CVBR Audio Coding Standard AAC / G 7.11 Audio Volume 0-100 Adjustable Image Resolution Main Stream: 2592X1920 10fps,2048X1536 17fps,1920X1080 25fps Sub Stream:D1,VGA,640X360,480X270,CIF,QCIF Parameter Settings Brightness, contrast, chroma saturation,Backlight Control,Mirror Privacy Mask Support 4 area can be set Image Capture Image quality , capture speed Time and Title Transparency, Time position, Time Format, Title Content Network Protocol RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP Onvif Support Onvif 2.0 User Permission Multi-user Classification Management Phone monitoring Support iPhone and android Mobile phone view SDK Provide open SDK Alarm Support Motion Detection, Linkage Alarm, Linkage recording, Video Loss Alarm Interface Audio Input 1CH input Audio output 1CH output USB Interface 1 USB interface ( Max: 64G) , front storage supported Video Output 1CH Video output, Support CVBS standard, PAL/NTSC Optional Network Interface 1 RJ45 Ethernet interface, 10/100M adaptation WIFI# WIFI 802.11bgn 3G# WCDMA 3G wireless networks RS485 Interface RS485 interface Alarm Interface 1CH input/1CH output Other Work Environment -10°C- +60°C;≤95% Power Supply DC 12V Product Size 38X38X38mm
